PUMP SERIES 400S, 400SE & 910SE-2
Features
- 10 Year Warranty*
- Designed and Built to last for 40-50 years / Life Expectancy
- Upright Design with Motor and switch above the the water
- 100 Gallons Per Minute flow rate
- Maintenance Free
- Specially Designed 1/2HP 115 volt motor exclusively for the Tramco Tower
- Heavy Duty Stainless Steel Float Ball
Benefits
- 10 Times a submersible Pump
- 10 Times The National Average Life of Residential Submersible Pump
- Eliminates 85% of Pump Failures Resulting from Water Entering Motor or Switch
- 2-3 Times the Flow Rate of Other Residential Pumps
- Requires Only Seasonal Inspection for Debris in the Basin
- Prevents Failures from Debris Getting Into the Pump or From The Pump Sitting Idle for long periods of time
- Allows Longevity, Dependable and Reliable Operation.

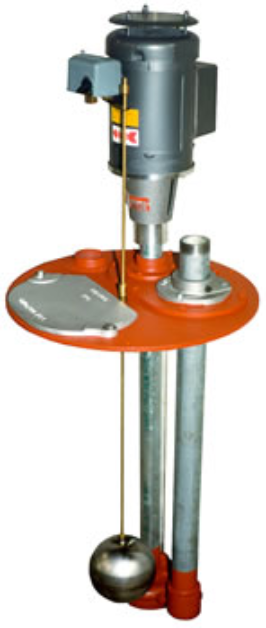

Specification Data – Tramco Model 400 SE Automatic Sewage Pump
TRAMCO’s Model 400SE Automatic Sewage Pumps are engineered and precision built for years of dependable, maintenance free service. Quality materials and construction for residential and commercial applications.
Applications
Sewage Ejector, Sump Pump
Discharge Pipe
Size 2″ schedule 40 hot dipped galvanized steel with a NPT connection
Pump
The Model 400SE is a centrifugal type pump fitted with a semi-open impeller accurately machined and balanced for smooth, quiet operation.
Motor Support Bracket
The heavy cast pedestal is accurately machined to house the thrust bearing and align the motor.
Mechanical Shaft Seal
Model 400SE pumps are fitted with a mechanical shaft seal which prevents the liquid being pumped from entering and contaminating the lower sleeve bearing while retaining the lubrication in the pump. Seals are available with hardened faces for abrasive liquid application.
Bearings
The thrust ball bearing is sealed, grease lubricated and elevated above the cover plate for protection from dirt and moisture. The lower bearing is self lubricating.
Floor Plate Suspension Cover
Heavy duty Adjustable 20″ diameter steel with a 2″ vent, (Type A), with inspection plate and removable pump plate without disturbing the vent(Type D).
Pump Lubrication
Tramco’s lubrication system provides continuous lubrication to shaft, self lubricated intermediate and lower sleeve bearings. It eliminates the need for external grease lines or product lubricated sleeve bearings.
Motor
The motor features a 1/2HP 115V single phase double capacitor start, induction run, totally enclosed fan colled with automatic thermal overload protection and drip canopy for added safety. The motor and pump shafts are connected by a flexible coupling that allows the motor to be easily removed without disturbing the pump and piping by simply removing four bolts.
Shaft Column Pipe
The pump is manufactured with schedule 80 hot dipped galvanized steel.
Shaft
The shaft is high accuracy, grade 1215 turned, ground and polished.
Float Control
Heavy duty motor mounted float switch with stainless steel float ball, brass float rod and easily adjustable brass rod stops.
